Projekt - Cube-Bikes
Rooflight F100
| Place / country: | Waldershof, Germany |
| Year: | 2011 |
| Building type: | Logistics Centre |
| Solutions: | Smoke Lift Rooflight F100 Upstands Motorised openers SHEV fittings. Central DIN pushbutton Pneumatic-electric pressure switch Wind and rain sensor set |
| Efficiency: | 32% energy saving Uw=2.1 W/(m²K) vs. Uw=3.1 W/(m²K) as per German Energy Performance of Buildings Directive 2009 |

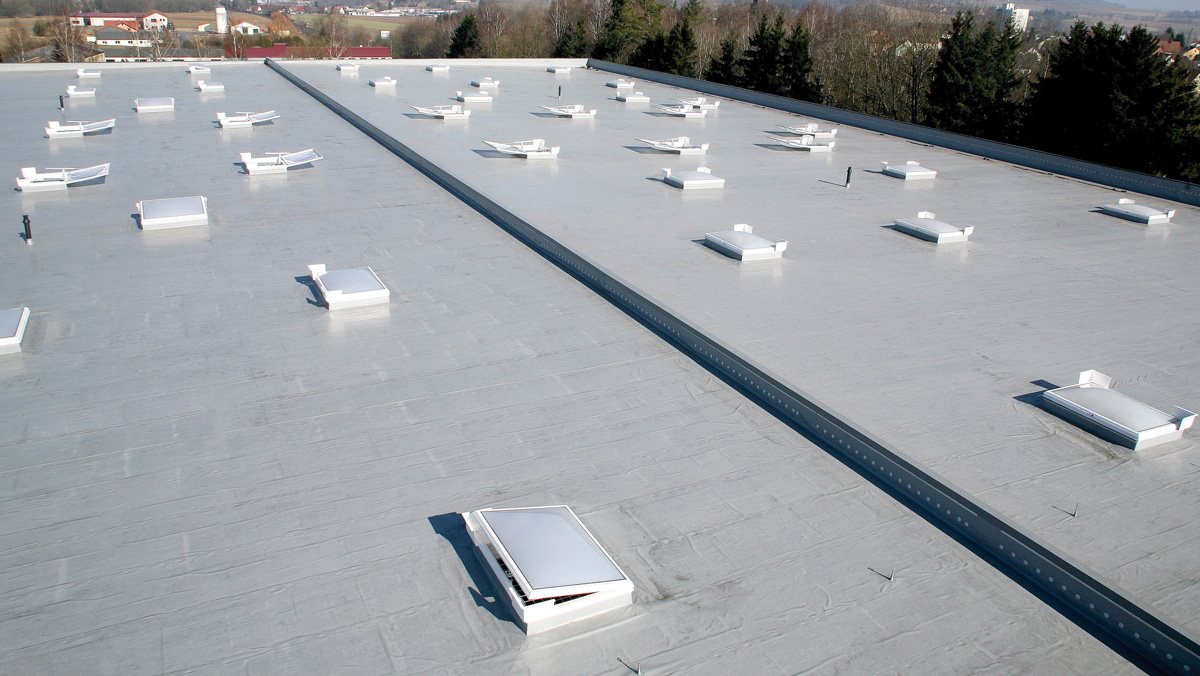

Extensive, energy-saving lighting in the new building using natural light, a reliable smoke and heat exhaust system and energy-efficient natural ventilation in the warehouse.

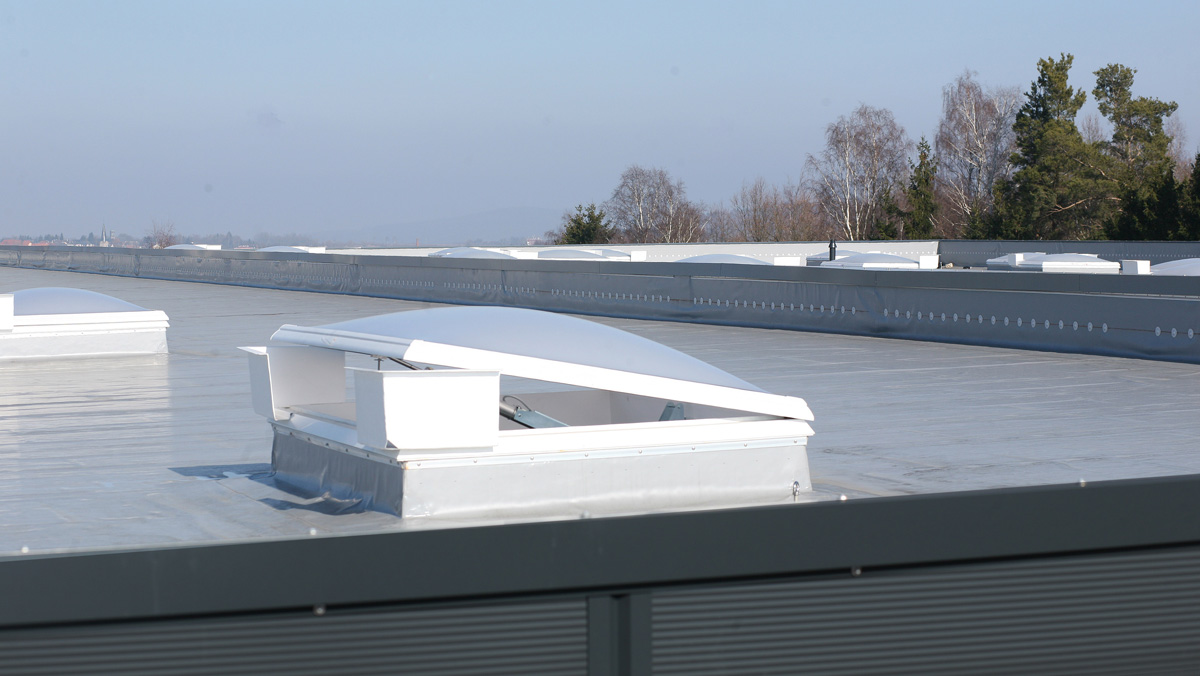

- Rooflights F100 as SHEV systems, thermally separated and free of thermal bridges, designed to hold SHEV fitting

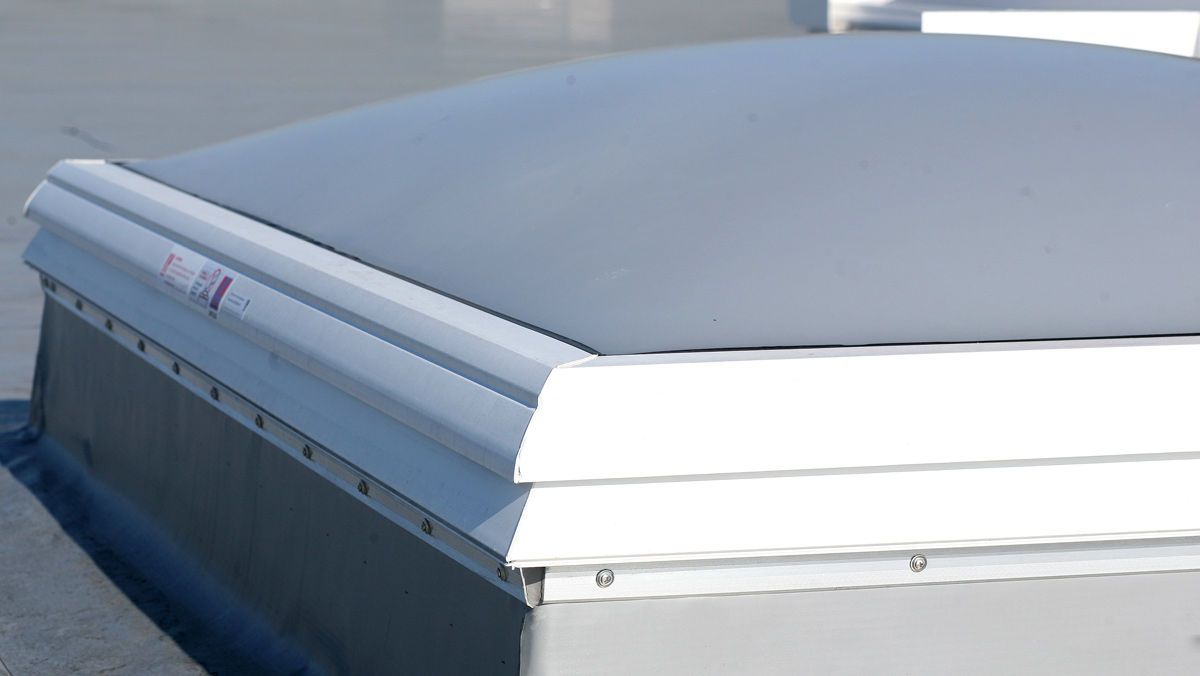

- Fibre-reinforced composite upstands featuring a seamless design and a thermal insulation core
- TIP technology: completely heat-insulated overall system

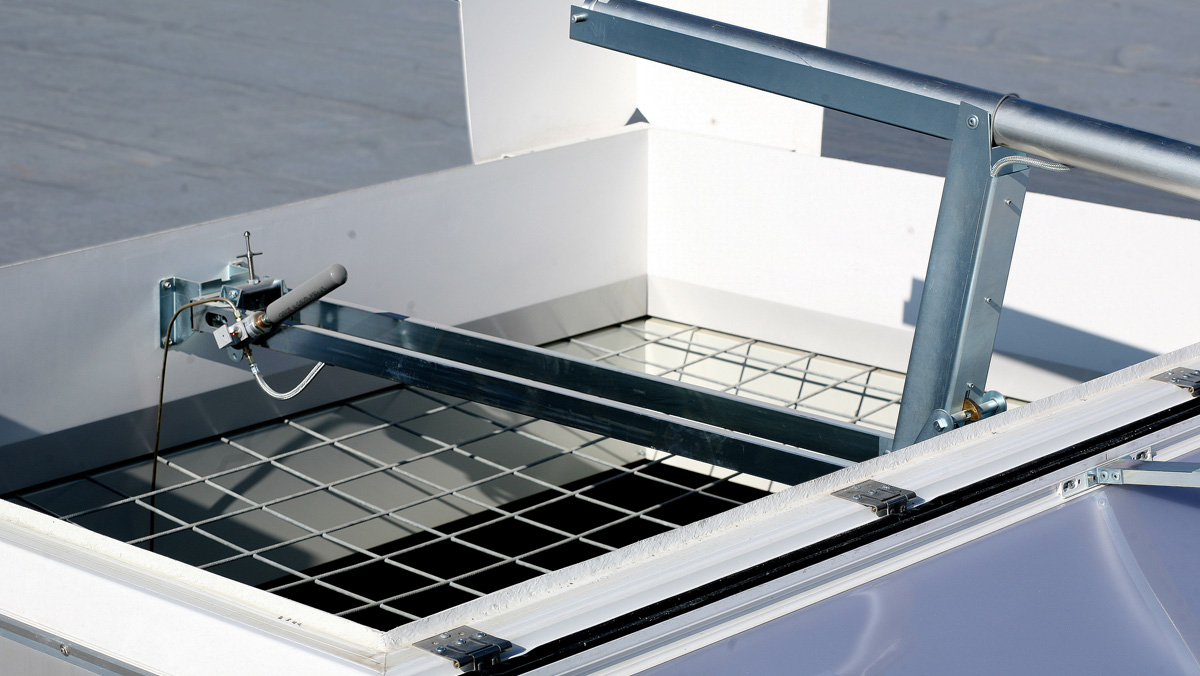

- SHEV fittings (DIN EN 12101-2) with CO2 remote and thermal release
- CO2 alarm station and SHEV control panels to activate ventilation and smoke exhaust drives
- Double-glazed, opal glass, 70% light transmission and 70% energy transmission
